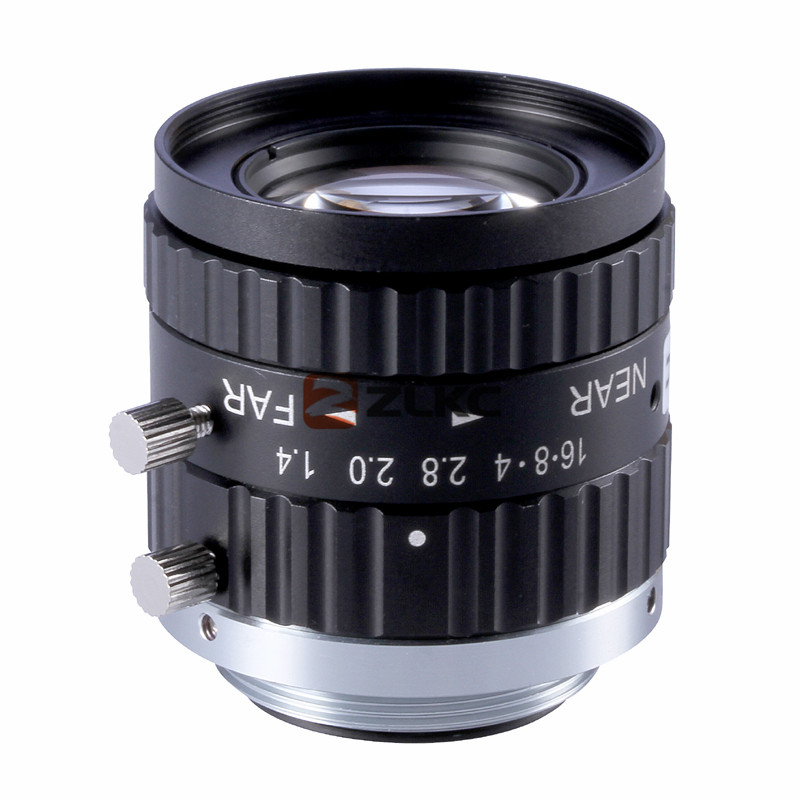

ZLKC Lens HM2514MP5 Manual Iris Lens 5 Megapixel 25mm, 2/3” Low Distortion FA Lens C Mount

Lens Brand：ZLKC
2/3″C-Mount 25mm F1.4-16
Low distortion Lens

◆Can suppress stray light
◆Low distortion, high contrast
◆Required for high accuracy

5MP 25mm Low Distortion FA Lens C Mount			Working Distance	Optical Magnification	2/3"Field of View(mm)
Model		HM2514MP5	mm	-	H	V
Image Size		2/3-inch	900	0.028X	317.5	237.7
Focal length		25mm	850	0.029X	299.9	224.5
F No.		F1.4-16	800	0.031X	282.3	211.3
M.O.D(m)		0.1-Inf.	750	0.033X	264.6	198.1
Operation	Iris	Manual	700	0.036X	247.0	184.9
Operation	Focus	Manual	650	0.039X	229.4	171.6
Angle of View (D×H×V)	2/3"	24.8°×20.0°×15.0°	600	0.042X	211.8	158.4
Angle of View (D×H×V)	1/2"	18.1°×14.5°×11.1°	550	0.046X	194.1	145.2
Distortion		<0.05%	500	0.050X	176.5	132.0
BFL		12.25mm	450	0.056X	158.9	118.8
Mount		C-Mount	400	0.063X	141.2	105.6
Object Dimension		108.0mm×82.0mm (WD=300mm)	350	0.072X	123.6	92.4
Dimension		Φ32.5×36.5mm	300	0.084X	108.0	82.0
Weight		67.0g	250	0.100X	88.3	66.0
Horizontal Resolution		5.0MP	200	0.126X	70.7	52.7
Filter Thread		M30.5x 0.5	150	0.168X	53.0	39.5
Working Temperature		-20ºC ～ +60ºC	100	0.253X	35.3	26.3



ZLKC Lens VM1616MPC Manual Iris Lens 5 Megapixel 16mm, 2/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 2/3″C-Mount 16mm F1.6 Low distortion Lens



ZLKC Lens VM2514MPC Manual Iris Lens 5 Megapixel 25mm, 2/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 2/3″C-Mount 25mm F1.4 Low distortion Lens



ZLKC Lens VM5018MPC Manual Iris Lens 5 Megapixel 50mm, 2/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 2/3″C-Mount 50mm F1.8 Low distortion Lens



ZLKC Lens VM3518MPC Manual Iris Lens 5 Megapixel 35mm, 2/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 2/3″C-Mount 35mm F1.7 Low distortion Lens



ZLKC Lens VM0420MP5 Manual Iris Lens 5 Megapixel 4mm, 1/1.8” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 1/1.8″C-Mount 4mm F2.0 Low distortion Lens



ZLKC Lens VM0620MP5 Manual Iris Lens 5 Megapixel 6mm, 1/1.8” Lightweight FA Lens C Mount
Lens Brand：ZLKC 1/1.8″C-Mount 6mm F2.0 Lightweight Lens

* Design and specification are subject to change without notice.
