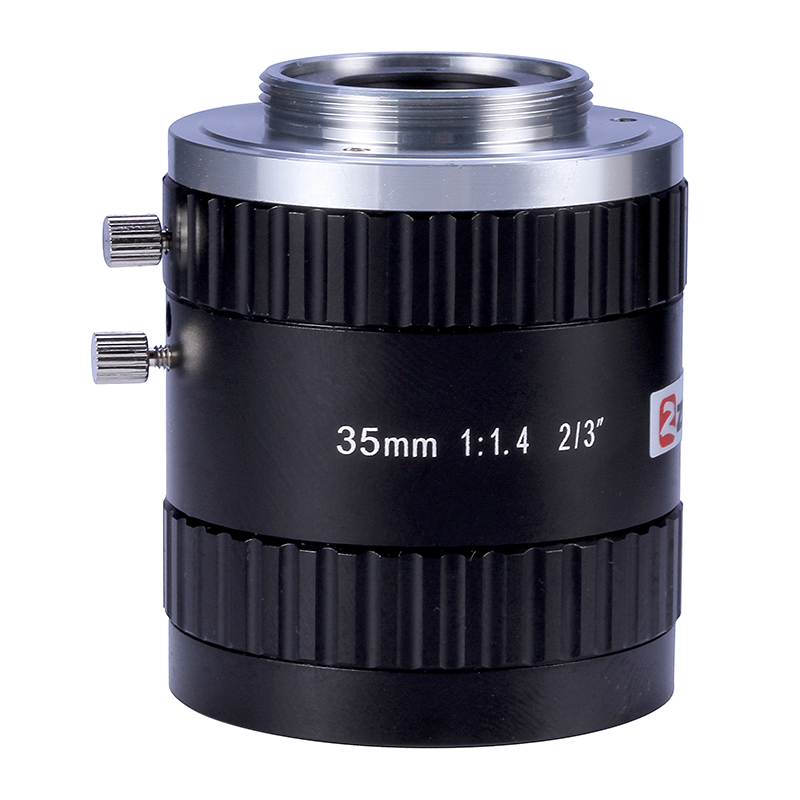

ZLKC Lens HM3514MP5 Manual Iris Lens 5 Megapixel 35mm, 2/3” Low Distortion FA Lens C Mount

Lens Brand：ZLKC
2/3″C-Mount 35mm F1.4
Low distortion Lens

◆Can suppress stray light
◆Low distortion, high contrast
◆Required for high accuracy

5MP 35mm Low Distortion FA Lens C Mount			Working Distance	Optical Magnification	2/3"Field of View(mm)
Model		HM3514MP5	mm	-	H	V
Image Size		2/3-inch	900	0.037X	236.2	176.9
Focal length		35mm	850	0.040X	223.2	167.2
F No.		F1.4-16	800	0.042X	210.3	157.5
M.O.D(m)		0.2-Inf.	750	0.045X	197.3	147.8
Operation	Iris	Manual	700	0.048X	184.3	138.1
Operation	Focus	Manual	650	0.052X	171.4	128.4
Angle of View (D×H×V)	2/3"	17.5°×14°×10.3°	600	0.056X	158.4	118.6
Angle of View (D×H×V)	1/2"	12.6°×10.1°×7.6°	550	0.061X	145.5	108.9
Distortion		<0.1%	500	0.067X	132.5	99.2
BFL		12.82mm	450	0.074X	119.6	89.5
Mount		C-Mount	400	0.083X	106.6	79.8
Object Dimension		80.7mm×60.4mm (WD=300mm)	350	0.094X	93.7	70.1
Dimension		Φ39×43.7mm	300	0.110X	80.7	60.4
Weight		130.0g	250	0.131X	67.7	50.6
Horizontal Resolution		5.0MP	200	0.162X	54.7	40.9
Filter Thread		M37x 0.5	150	0.213X	41.8	31.2
Working Temperature		-20ºC ～ +60ºC	-	-	-	-



ZLKC Lens VM1616MPC Manual Iris Lens 5 Megapixel 16mm, 2/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 2/3″C-Mount 16mm F1.6 Low distortion Lens



ZLKC Lens VM2514MPC Manual Iris Lens 5 Megapixel 25mm, 2/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 2/3″C-Mount 25mm F1.4 Low distortion Lens



ZLKC Lens VM5018MPC Manual Iris Lens 5 Megapixel 50mm, 2/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 2/3″C-Mount 50mm F1.8 Low distortion Lens



ZLKC Lens VM3518MPC Manual Iris Lens 5 Megapixel 35mm, 2/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 2/3″C-Mount 35mm F1.7 Low distortion Lens



ZLKC Lens VM0420MP5 Manual Iris Lens 5 Megapixel 4mm, 1/1.8” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 1/1.8″C-Mount 4mm F2.0 Low distortion Lens



ZLKC Lens VM0620MP5 Manual Iris Lens 5 Megapixel 6mm, 1/1.8” Lightweight FA Lens C Mount
Lens Brand：ZLKC 1/1.8″C-Mount 6mm F2.0 Lightweight Lens

* Design and specification are subject to change without notice.
