◆Effectively improve transmittance
◆High contrast,robust design
◆Design for large depth of field
◆TV distortion less than 0.1%

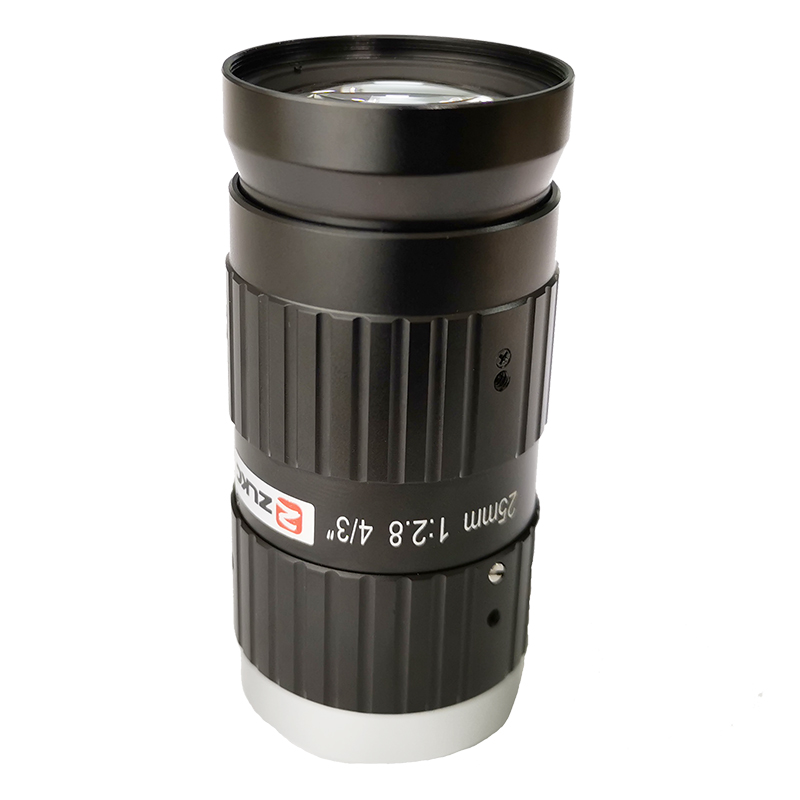

20MP 25mm FA Lens C Mount
|
Working Distance
|
Optical Magnification
|
1.1"Field of View(mm)
|
Model
|
HK2528MP20
|
mm
|
X
|
H
|
V
|
Image Size
|
1.1-inch
|
5000
|
0.005X
|
2820.0
|
2120.0
|
Focal length
|
25mm
|
2000
|
0.013X
|
1084.6
|
815.4
|
F No.
|
F2.8-22
|
1000
|
0.025X
|
564.0
|
424.0
|
M.O.D(m)
|
0.1-Inf.
|
900
|
0.028X
|
503.6
|
378.6
|
Operation
|
Iris
|
Manual
|
800
|
0.031X
|
454.8
|
341.9
|
Focus
|
Manual
|
700
|
0.036X
|
391.7
|
294.4
|
Angle of View
(D×H×V)
|
1.1"
|
37.6°×30.4°×23°
|
600
|
0.042X
|
335.7
|
252.4
|
1"
|
34.2°×27.6°×20.9°
|
550
|
0.045X
|
313.3
|
235.5
|
2/3"
|
23.9°×19.2°×14.5°
|
500
|
0.050X
|
282.0
|
212.0
|
Distortion
|
<0.1%
|
450
|
0.055X
|
256.4
|
192.7
|
BFL
|
29.6mm
|
400
|
0.061X
|
231.1
|
173.8
|
Mount
|
C-Mount
|
350
|
0.070X
|
207.4
|
151.4
|
Object Dimension
|
174.1mm×130.9mm (WD=300mm)
|
300
|
0.081X
|
174.1
|
130.9
|

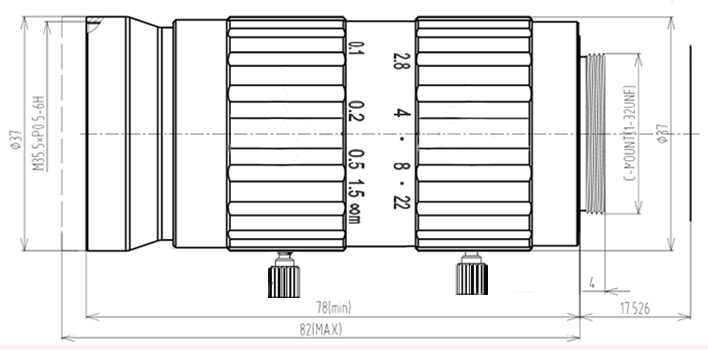

Dimension
|
Φ37×78mm
|
250
|
0.096X
|
146.9
|
110.4
|
Weight
|
182g
|
200
|
0.118X
|
119.4
|
89.5
|
Filter Thread
|
M35.5x 0.5
|
150
|
0.154X
|
91.6
|
68.8
|
Working Temperature
|
-20ºC ~ +60ºC
|
100
|
0.221X
|
63.8
|
48.0
|
* Design and specification are subject to change without notice.
