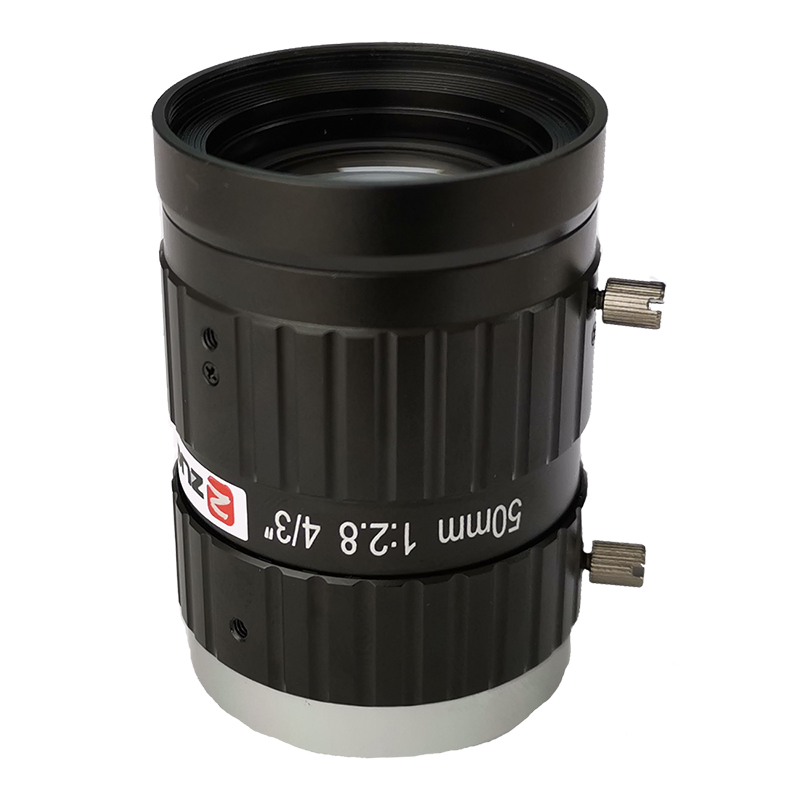

ZLKC Lens KM5028MP20 Manual Iris Lens 20 Megapixel 50mm, 4/3” Low Distortion FA Lens C Mount

Lens Brand：ZLKC
4/3″C-Mount 50mm F2.8-22
Low distortion Lens

◆Design for large depth of field
◆Distortion less than 0.1%
◆Required for high accuracy

20MP 50mm Low Distortion FA Lens C Mount			Working Distance	Optical Magnification	4/3"Field of View(mm)
Model		KM5028MP20	mm	X	H	V
Image Size		4/3-inch	5000	0.010X	1721.3	1292.5
Focal length		50mm	2000	0.026X	682.9	512.7
F No.		F2.8-22	1000	0.052X	341.4	256.2
M.O.D(m)		0.3-Inf.	900	0.057X	306.6	230.0
Operation	Iris	Manual	800	0.065X	272.5	204.5
Operation	Focus	Manual	750	0.069X	255.2	191.5
Angle of View (D×H×V)	4/3"	24.8°×19.8°×14.9°	700	0.074X	237.9	178.5
	1"	18.2°×14.6°×10.9°	650	0.080X	220.5	165.4
	2/3"	12.6°×10.1°×7.5°	600	0.087X	203.2	152.4
Distortion		<0.02%	550	0.095X	185.8	139.4
BFL		21.1mm	500	0.105X	168.4	123.6
Mount		C-Mount	450	0.117X	151.0	113.2
Object Dimension		168.4mm×123.6mm (WD=500mm)	400	0.132X	133.5	100.1
Dimension		Φ38×53.9mm	350	0.152X	116.0	87.0
Weight		126.8g	300	0.179X	98.6	73.9
Filter Thread		M35.5x 0.5	-	-	-	-
Working Temperature		-20ºC ～ +60ºC	-	-	-	-



ZLKC Lens KM1228MP20 Manual Iris Lens 20 Megapixel 12mm, 4/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 4/3″C-Mount 12mm F2.8-22 Low distortion Lens



ZLKC Lens KM1628MP20 Manual Iris Lens 20 Megapixel 12mm, 2/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 4/3″C-Mount 16mm F2.8-22 Low distortion Lens



ZLKC Lens KM2528MP20 Manual Iris Lens 20 Megapixel 25mm, 4/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 4/3″C-Mount 25mm F2.8-22 Low distortion Lens



ZLKC Lens KM3528MP20 Manual Iris Lens 20 Megapixel 35mm, 4/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 4/3″C-Mount 35mm F2.8-22 Low distortion Lens



ZLKC Lens KM5028MP20 Manual Iris Lens 20 Megapixel 50mm, 4/3” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 4/3″C-Mount 50mm F2.8-22 Low distortion Lens



ZLKC Lens HK1228MP20 Manual Iris Lens 20 Megapixel 12mm, 1.1” Low Distortion FA Lens C Mount
Lens Brand：ZLKC 1.1″C-Mount 12mm F2.8-22 Low distortion Lens

* Design and specification are subject to change without notice.
