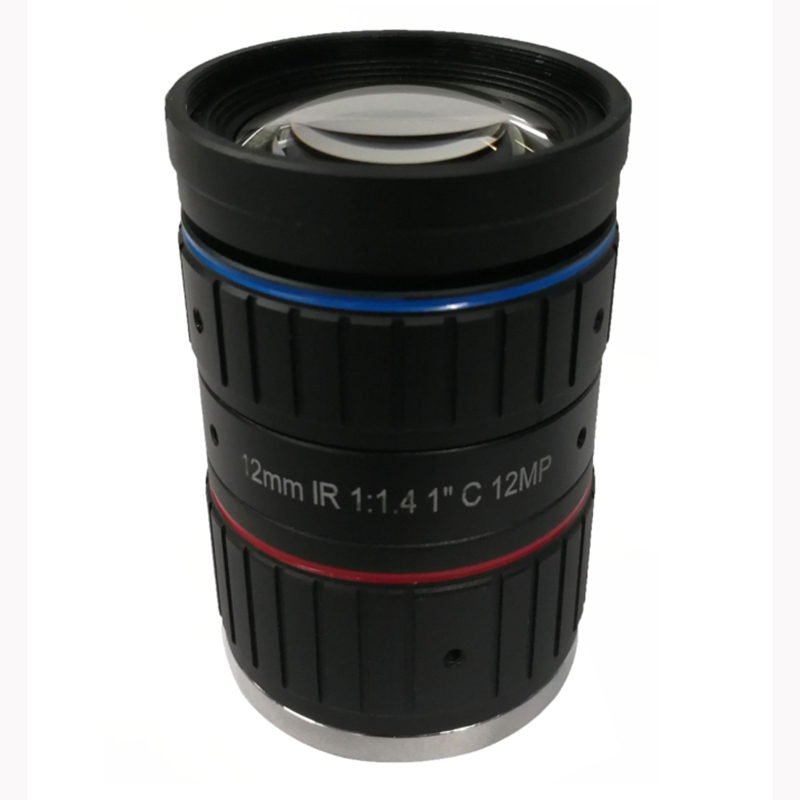

◆F1.4 IR monitoring lens
◆Excellent brightness
◆High resolution, low distortion
Model
|
KM1214MP12IR
|
Image Size
|
1-inch
|
Focal length
|
12mm
|
F No.
|
F1.4-C
|
M.O.D(m)
|
0.3
|
Operation
|
Iris
|
Manual
|
Focus
|
Manual
|
Horizontal Angle of View
|
1" Type
|
68.3°×61.8°×34.5°
|
2/3"Type
|
49.1°×39.3°×30.4°
|
Distortion
|
1" Type
|
-2.1%
|
BFL
|
14.9mm
|
MFL
|
10.9mm
|
Flange BFL
|
17.526mm
|
Mount
|
C-Mount
|
Dimension
|
Ф42.5x62.5mm
|
Weight
|
145.0g
|
Operating temperature
|
-30℃~+70℃
|
Remark
|
12 Megapixel IR Lens
|
|
 |

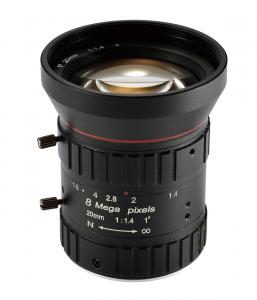

ZLKC LENS VM1614MP8IR |
8 Megapixel Manual Iris Fixed focal length Lens 16mm,1" C Mount HD Lens ,lens for Machine Vision Lens cameras |
|
|
 |

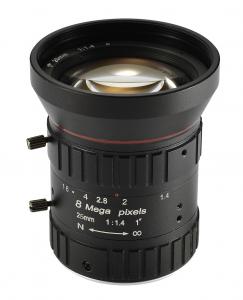

ZLKC LENS VM2514MP8IR |
8 Megapixel Manual Iris Fixed focal length Lens 25mm,1" C Mount HD Lens ,lens for Machine Vision Lens cameras |
|
|
 |
ZLKC Lens KM1214MP12IR Manual Iris Lens 12 Megapixel 12mm, 1” Low Distortion FA Lens C Mount |
Lens Brand:ZLKC
1″C-Mount 12mm F1.4
Low distortion IR Lens
|
|
|
 |
ZLKC Lens KM1614MP12IR Manual Iris Lens 12 Megapixel 16mm, 1” Low Distortion FA Lens C Mount |
Lens Brand:ZLKC
1″C-Mount 16mm F1.4
Low distortion IR Lens
|
|
|
 |
ZLKC Lens KM1214MP8 Manual Iris Lens 8 Megapixel 12mm, 1” Low Distortion FA Lens C Mount |
Lens Brand:ZLKC
1″C-Mount 12mm F1.4
Low distortion Lens
|
|
|
 |
ZLKC Lens KM1614MP8 Manual Iris Lens 5 Megapixel 16mm, 1” Low Distortion FA Lens C Mount |
Lens Brand:ZLKC
1″C-Mount 16mm F1.4
Low distortion Lens
|
|
* Design and specification are subject to change without notice.
