◆Can suppress stray light
◆Large depth of field focus lens
◆Excellent brightness
◆High resolution, low distortion

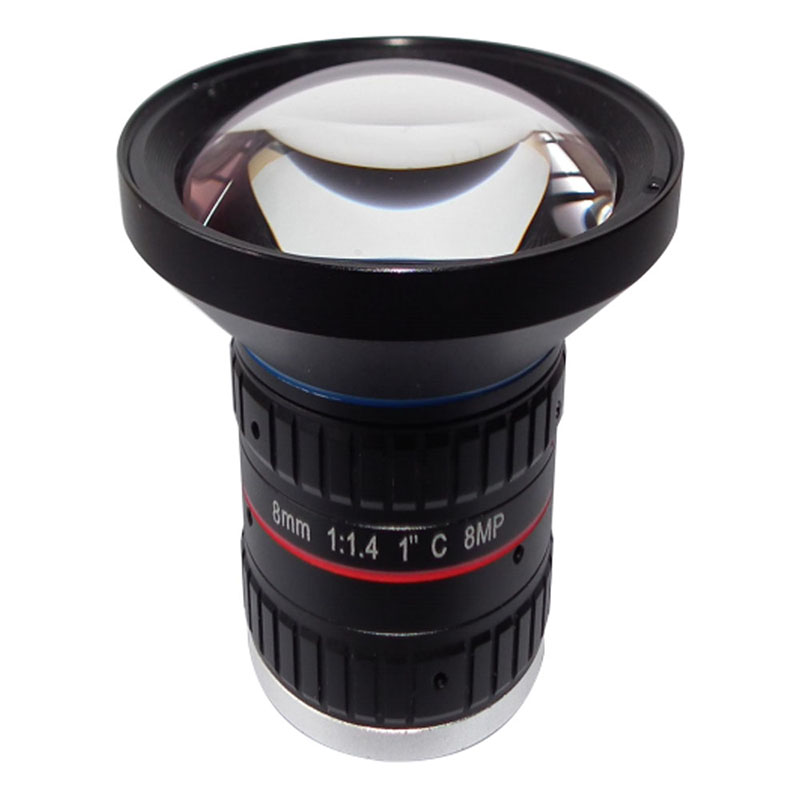

Model
|
KM0814MP8
|
Image Size
|
1-inch
|
Focal length
|
8mm
|
F No.
|
F1.4-C
|
M.O.D(m)
|
0.3
|
Operation
|
Iris
|
Manual
|
Focus
|
Manual
|
Horizontal Angle of
View D×H×V(°)
|
1" Type
|
95.9°×84.0°×68.1°
|
2/3"Type
|
72.1°×60.5°×48.3°
|
Distortion
|
1" Type
|
-3.8%
|
Back focal length
|
10.5mm
|
Flange BFL
|
17.526mm
|
Mount
|
C-Mount
|
Dimension
|
Ф67x67mm
|
Weight
|
313.0g
|
Horizontal Resolution
|
More than 160lp/mm
|
Remark
|
8MP ITS Lens
|
|
 |
ZLKC Lens VM7528MPC Manual Iris Lens 8 Megapixel 75mm, 1” Low Distortion FA Lens C Mount |
Lens Brand:ZLKC
1″C-Mount 75mm F2.8
Low distortion Lens
|
|
|
 |
ZLKC Lens KM0814MP8 Manual Iris Lens 8 Megapixel 8mm, 1” Low Distortion FA Lens C Mount |
Lens Brand:ZLKC
1″C-Mount 8mm F1.4
Low distortion Lens
|
|
|
 |
ZLKC Lens HK1614MP10 Manual Iris Lens 10 Megapixel 16mm, 1” Low Distortion FA Lens C Mount |
Lens Brand:ZLKC
1″C-Mount 16mm F1.4-16
Low distortion Lens
|
|
* Design and specification are subject to change without notice.
